Price:
1175,74 ৳

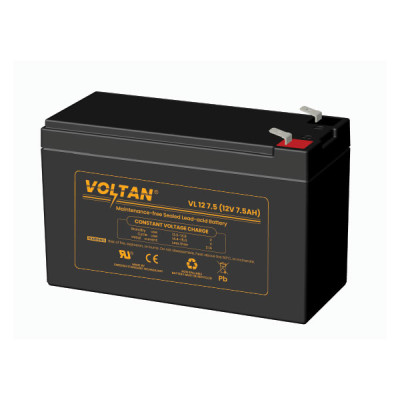

Voltan 12V 7.5AH UPS Battery
Key Features:
Brand: Voltan
Capacity: 7.5AH
Nominal Voltage: 12V
Internal Resistance: Approx. 28mΩ
Warranty: 6 Month Warranty
Specification:
| Nominal Voltage | 12 V |
| Capacity (25oC) | 20HR(10.5V): 7.5Ah 10HR(10.5V): 6.6Ah 1HR(9.60V): 4.58Ah |
| Dimension | Length: 152±1.5mm (5.98inch) Width: 67±1mm (2.64inch) Height: 99±1mm (3.90inch) Total Height: 105±1mm (4.13inch) |
| Approx. Weight | 2.0kg (4.41lbs)±5% |
| Terminal type | T1 |
| Internal resistance (Fully charged, 25oC) | Approx. 28mΩ |
| Capacity affected by Temperature (20HR) | 40oC: 102% 25oC: 100% 0oC: 85% -15oC: 65% |
| Self-Discharge (25oC) | 3 month: Remaining Capacity: 91% 6 month: Remaining Capacity: 82% 12 month: Remaining Capacity: 65% |
| Nominal Operating Temperature | 25oC±3oC(77oF±5oF) |
| Operating Temperature Range | Discharge: -15oC~50oC(5oF~122oF) Charge: -10oC~50oC(14oF~122oF) Storage: -20oC~50oC(-4oF~122oF) |
| Float Charging Voltage (25oC) | 13.60 to 13.80V Temperature compensation: -18mV/oC |
| Cyclic Charging Voltage (25oC) | 14.50 to 14.90VTemperature compensation:-30mV/oC |
| Maximum Charging Current | 2.1A |
| Terminal Material | Copper |
| Maximum Discharge Current | 105A(5 sec.) |
| Designed Floating Life (25oC) | 5 years+ |
| Warranty | 6 Month |
