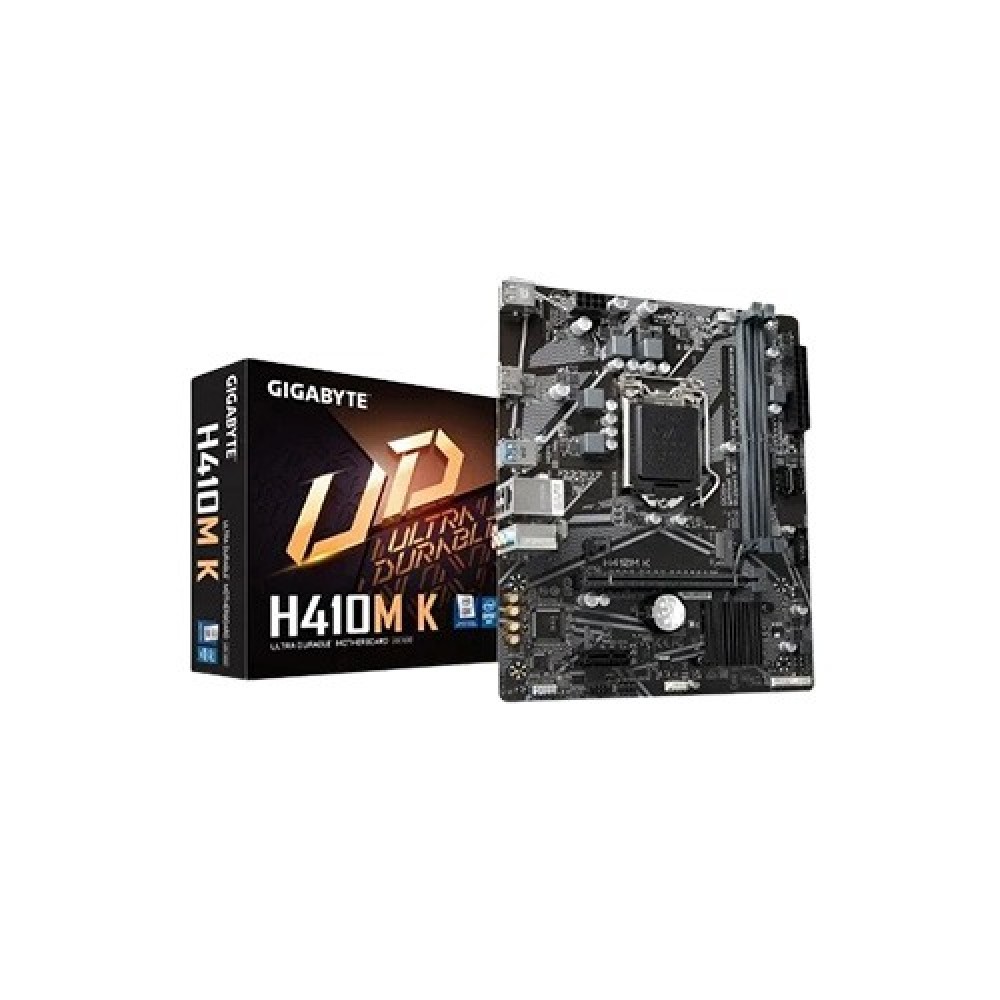

GIGABYTE H410M K DDR4 INTEL MOTHERBOARD
Key Features
Supports 10th Gen Intel® Core™ Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
NVMe PCIe Gen3 x4 2280 M.2 Connector
8-Channel HD Audio with High Quality Audio Capacitors
| Mainboard | |
| Chipset | Intel H470 Express Chipset |
| Memory | |
| Memory | 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) |
| Networking & Connectivity | |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Software | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Technical Info | |
| CPU | 1. LGA1200 package: Support 10th Generation Intel Core i9 processors/ Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors 2. L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
| Model | H410M K |
| Controller | iTE I/O Controller Chip |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Ports | |
| Connector | Back Panel 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Jack | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Interface | Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) 2 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 5 Intel Optane Memory Ready |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper |
| USB | 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Physical Specification | |
| Color | Black |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
| Others | |
| Other Features | H/W Monitoring Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install |
| Warranty Information | |
| Warranty | 3-years |
Description
Gigabyte H410M K DDR4 Micro ATX Motherboard in Bangladesh
The Gigabyte H410M K DDR4 Micro ATX Motherboard is a versatile and reliable choice for building efficient and budget-friendly systems. With support for 10th Generation Intel Core processors, this motherboard offers robust performance and modern connectivity options in a compact Micro ATX form factor.
Technical Details
The Gigabyte H410M K is built on the Intel H470 Express Chipset, supporting 10th Gen Intel Core processors with LGA1200 sockets. It accommodates up to 64GB of DDR4 RAM in dual-channel configuration, with speeds of up to 2933MHz depending on the processor. The motherboard features an integrated Intel HD Graphics processor with an HDMI port supporting resolutions up to 4096x2160@30 Hz. Storage options include 1 x M.2 slot (PCIe 3.0 and SATA) and 2 x SATA 6Gb/s connectors. Expansion is supported via one PCI Express x16 and one PCI Express x1 slot. Connectivity options include USB 3.2 Gen 1 and USB 2.0 ports, along with Realtek GbE LAN for high-speed networking. The onboard Realtek Audio CODEC ensures high-definition audio output with customizable audio jack functionality.
