Price:
6,500.00 ৳

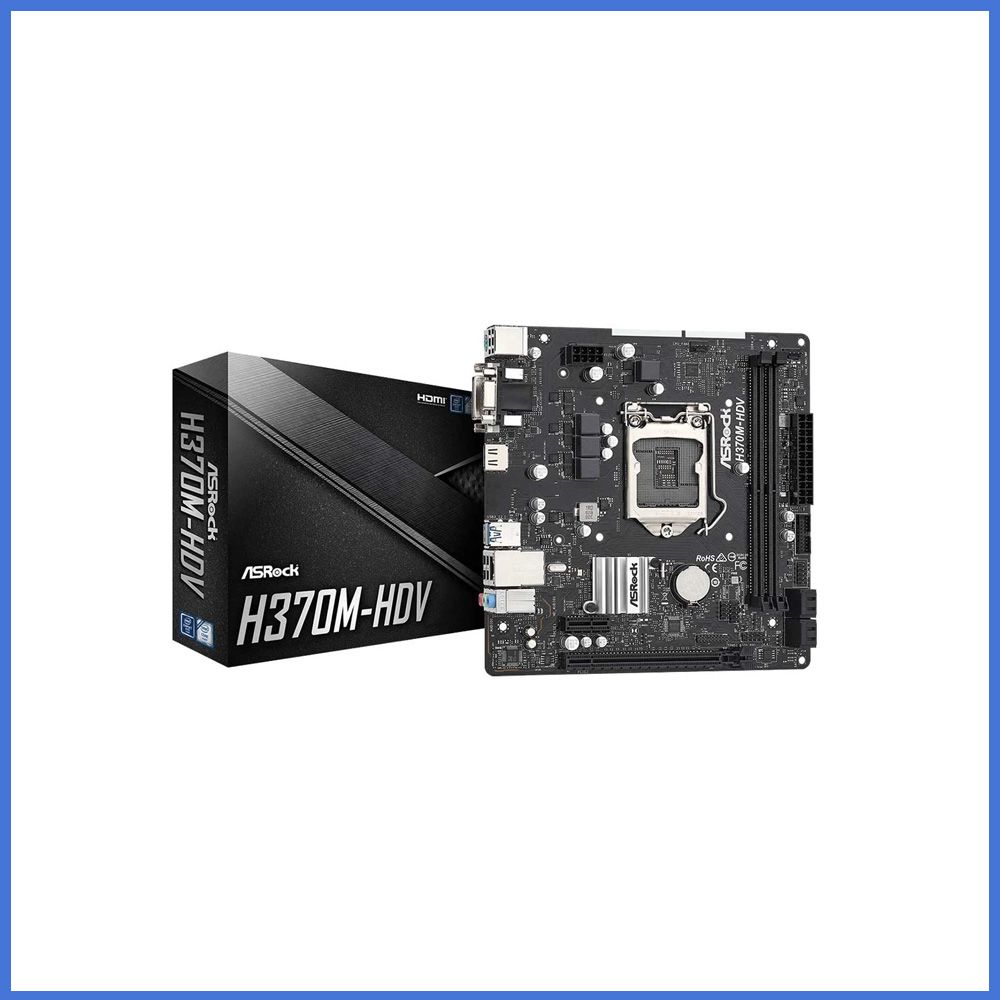

ASRock H370M-HDV Motherboard
Key Features
Model: H370M-HDV
Supports 9th and 8th Gen Intel Core Processors
Up to 2666 MHz RAM
4 Power Phase design
Intel Turbo Boost 2.0
Tags :
Specification
Basic Information | |
| Supported CPU | Supports 9th and 8th Gen Intel Core Processors (Socket 1151) Supports CPU up to 95W 4 Power Phase design Supports Intel Turbo Boost 2.0 Technology |
| Chipset | Intel H370 |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support DRAM, PCH 1.05V Voltage Multi-adjustment |
| Form Factor | Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm Solid Capacitor design |
| Audio | 7.1 CH HD Audio (Realtek 887/897 Audio Codec) Supports Surge Protection |
Expansion Slots | |
| PCI | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) 1 x PCI Express 3.0 x1 Slot |
Memory | |
| Type | DDR4 |
| Slots | 2 x DIMM Slots |
| Supported Memory | DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory Dual Channel DDR4 Memory Technology |
| Maximum Memory | 64GB |
Graphics | |
| Graphics | Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics DirectX 12 HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 - Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port |
Connector & Ports | |
| HDMI | 1 x HDMI Port (HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz) |
| D-Sub (s) | 1 x D-Sub Port |
| DVI-D (s) | 1 x DVI-D Port |
| USB (s) | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| LAN Port (s) | PCIE x1 Gigabit LAN 10/100/1000 Mb/s 1 x Realtek RTL8111H Supports Wake-On-LAN Supports Energy Efficient Ethernet 802.3az Supports PXE |
| Supported Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 15), NCQ, AHCI and Hot Plug |
| Audio | 1 x Front Panel Audio Connector HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Ports | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| TPM (Trusted Platform Module ) | - 1 x TPM Header |
Warranty Information | |
| Manufacturing Warranty | 03 years warranty |
Description
ASRock H370M-HDV 8th and 9th Gen Micro ATX Motherboard
ASRock H310CM-HDV Motherboard is compatible with 9th and 8th Gen Intel Core Processors (Socket 1151). It supports DDR4 2666. Graphics Output Options are DVI-D, D-Sub, and HDMI. 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps. 4 SATA3. 4 USB 3.1 Gen1 (2 Front, 2 Rear). It has Full Spike Protection.
ASRock Super Alloy
This motherboard has a High-Density Glass Fabric PCB design which lessens the density of the gap in between the PCB layers to protect the motherboard from short circuits happening because of humidity. Sapphire Black PCB makes it eye-catching. It has been used for the safety and durability of the motherboard.
Faster Data Transmission
ASRock H370M-HDV Motherboard has 4 x USB3.2 onboard which can deliver data transfer 10x faster than USB 2.0. USB 3.2 Gen1 technology has upgraded the data transfer rate up to 5GB/s. It has become more efficient and faster. Asrock is using this technology for a stunning data transfer rate. It saves time and improves productivity.
3 Graphics Outputs
ASRock H370M-HDV Motherboard has all three types of most used graphics output connectors. It supports D-Sub, DVI-D, and HDMI combo. It also has an HDMI port which supports 4k resolution. It may need the help of integrated graphics though. With that, it will deliver the most stunning graphic quality. It comes with a 10-bit HEVC Decoding/Encoding which provides better video quality and a higher bit-depth video experience.
| Brands | Asrock |
